Dishwasher spray arms matter more than you think

The difference between a dishwasher that merely runs and one that actually cleans comes down to one thing: how well it moves water.

In our labs, we’ve measured cleaning performance using dishes coated in baked-on cheese, spinach, oatmeal, and egg. Some machines power through that soil without leaving a trace. Others leave residue behind—especially on the upper rack. The deciding factor, more often than not, is the design and performance of the spray arms.

Spray arms are the mechanical core of every dishwasher. They determine water pressure, coverage patterns, and whether tough messes get blasted off or baked on even harder. Noise ratings and smart features may grab attention on a spec sheet, but spray engineering is what separates strong performers from average ones.

Here’s what that actually means—and which current models get it right.

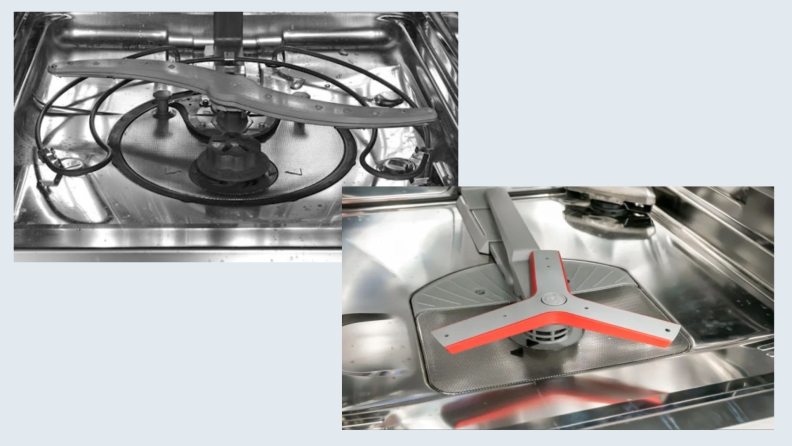

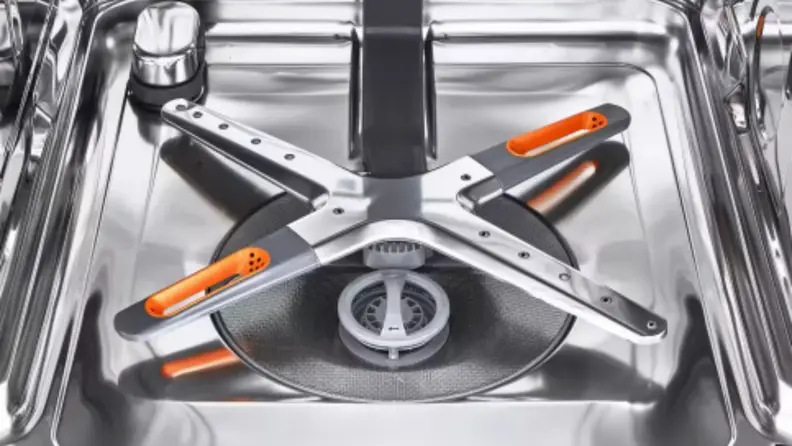

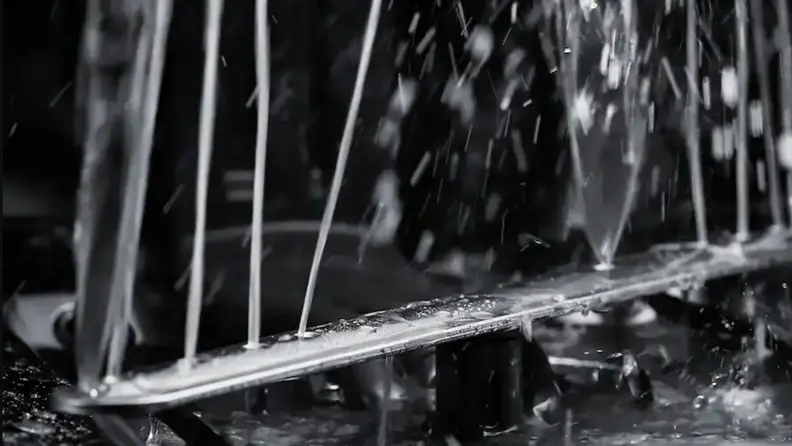

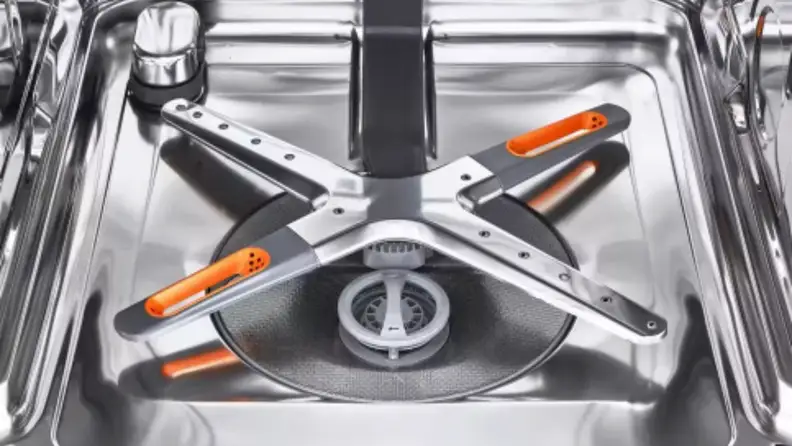

Spray arms are responsible for distributing pressurized water throughout the tub, and the details of their construction matter more than most shoppers realize. Most dishwashers use two rotating arms—one beneath the bottom rack and one under the upper rack. Midrange and premium models often add a third arm at the top of the tub. That additional arm isn’t cosmetic. It changes how water reaches the upper rack and, in many cases, how consistently a machine performs across a full load.

Why spray coverage determines cleaning performance

In our testing, uneven spray coverage shows up in predictable ways. Bowls placed close together retain residue, and glassware on the upper rack has streaks or trapped debris. Corners of baking dishes collect leftover grit. These aren’t detergent issues; they’re distribution problems. Water simply isn’t reaching every surface with enough force. That’s where thoughtful spray engineering makes a measurable difference.

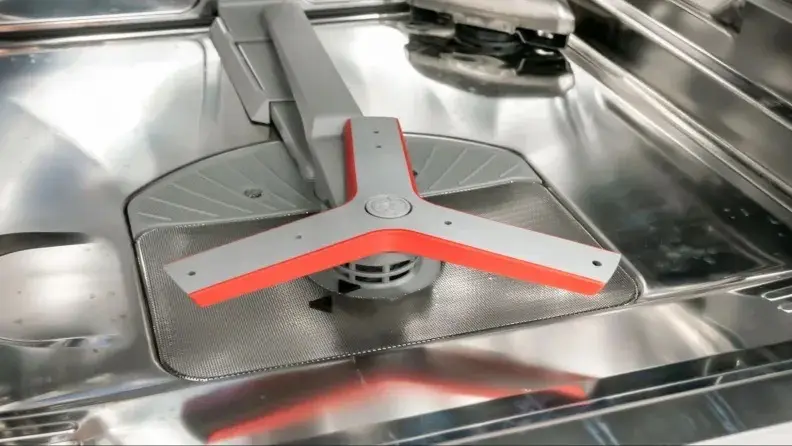

The Bosch 800 Series (such as the current SHX78CM5N) pairs a third spray arm with Bosch’s PrecisionWash system, which uses sensors to monitor soil levels and adjust water pressure during the cycle. This lineup consistently delivers strong upper-rack cleaning—an area where weaker machines often struggle. The dedicated top spray arm ensures glasses and small bowls receive direct, pressurized coverage rather than relying on deflected spray from below.

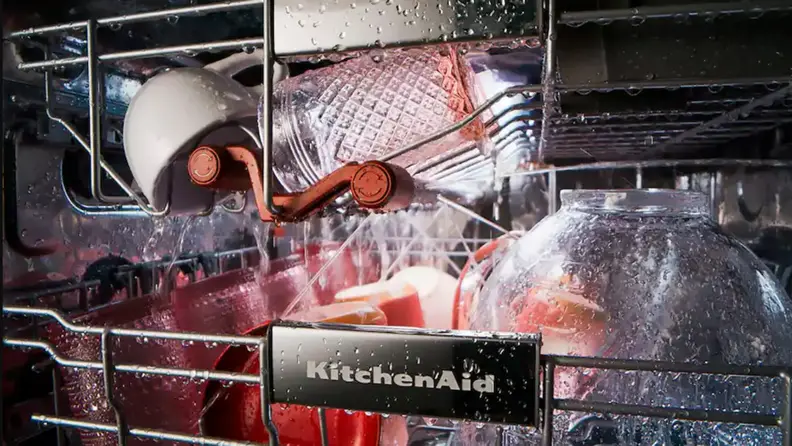

KitchenAid’s KDPM604KPS takes a similarly performance-focused approach. Its third-level rack includes dedicated spray coverage, allowing flatware and utensils to sit up top without sacrificing cleaning below. That separation reduces competition for water pressure within the tub, leading to more consistent results.

Beyond rotating arms, some manufacturers deploy dedicated jets—small nozzles built into the rack or upper interior that fire concentrated streams straight up into tall, narrow vessels. These are often called bottle jets or deep-clean jets. Where traditional rotating arms spray broadly and can struggle to reach the inside of water bottles, sports bottles, vases, or other tall containers, these dedicated jets deliver direct, high-pressure water into the hard-to-reach interior of those items. This targeted approach complements the broader spray arm system rather than replacing it, and for anyone who regularly washes oddly shaped or narrow drinkware, it can make a noticeable difference in cleaning results.

Spray movement matters as much as spray count

A dishwasher’s spray movement pattern is just as important as the number of spray arms it has. The LG LDPH7972S dishwasher uses the QuadWash system, in which spray arms rotate along multiple axes rather than spinning in a single circular path. This allows the dishwasher to reach into the corners of containers and handle mixed loads, even if you haven’t loaded the racks as efficiently as possible. During testing, models in this category tend to perform well when dishes aren’t arranged perfectly—a real-world advantage for busy households.

The GE Profile PDP715SYVFS approaches the problem through adaptive wash technology. Its AutoSense sensor-driven system adjusts spray intensity mid-cycle based on the food stain and soil levels it detects. This allows the dishwasher to increase the force of its spray or scale back where needed, rather than maintaining constant pressure. GE’s system also uses an array of high-count jets, including upward-facing bottle jets and dedicated silverware coverage, to improve vertical spray penetration. That balance improves cleaning consistency without dramatically increasing water use.

The most effective machines don’t use more water; they direct it more intelligently. Targeted spray isn’t limited to individual jets. Many machines also allow you to control where the water flows.

Most modern dishwashers let you choose wash zones that target only the upper or only the lower rack when washing a partial load. This shortens cycle time, but it also means the dishwasher can concentrate pump pressure and flow on fewer jets by restricting where water is sprayed, and effectively increasing the force hitting the dishes you care about. It’s a simple but meaningful way to improve cleaning performance without using more water, and it’s especially helpful for households that routinely wash only glassware or just pots and pans.

What you get at different price tiers

Budget dishwasher models take a simpler approach, but that simplicity doesn’t guarantee poor performance. For example, the Whirlpool WDP540HAMZ relies on two spray arms with a fixed spray pattern—this is your traditional configuration. The absence of a third arm and of adaptive wash intelligence doesn’t impede its performance, as its bottom spray arm is well-angled and supported by steady pump pressure. In testing, machines in this tier tend to handle everyday dinnerware effectively. They may struggle more with heavily baked-on messes, but for standard plates, bowls, and glasses, they perform reliably.

As you move into midrange and premium territory, spray systems become more forgiving. You don’t have to leave excessive space between dishes or avoid certain rack zones. Stronger coverage reduces dead spots inside the tub, which means fewer re-washes and less micromanaging of every load.

Premium models like those in Miele’s current G7000 series also pay attention to water management. The refined spray geometry and advanced filtration systems help maintain pressure and reduce debris recirculation over time, and that’s why Miele tends to post consistently high cleaning scores.

Maintenance still plays a role

As with every part of a dishwasher's interior, food waste leads to nasty residue. Over time, spray arms can clog with debris or mineral buildup, especially in areas of the U.S. that have hard water. If you notice that the cleaning performance of your dishwasher suddenly drops, there may be an obstruction in the spray arm rather than a failing pump or a detergent problem.

Most spray arms can be removed from your dishwasher without tools, and then you can rinse them clean under warm water. Clearing blocked jet holes restores proper pressure and rotation.

Higher-end models often include more advanced filtration systems, which can reduce the frequency of buildup, but periodic inspection still matters.
